Universele signaal omvormer

€ 138,46

Verzenden

280sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

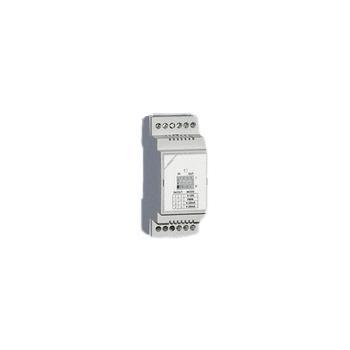

The CVT-UCVP-DR signal converter provides precise signal conversion and isolation between sensors, PLCs and other control sources. Applications include industrial automation, test equipment and home automation.

The CVT-UCVP-DR universal signal converter offers three-way isolation and is designed to convert standard process input/output signals. A robust power supply interface of 18-32 VDC / 12-18 VAC and is suitable for machine applications. At the same time of the conversion, a galvanic isolation is created. This filters out noise signals that may exist when used in specific applications. The PCB has a conformal coating and is located in a DIN rail housing that is ideally suited for mounting in a control panel.

0-10 VDC/0-20 mA/4-20 mA/PWM input, adjustable via switch
0-10 VDC/0-20 mA/4-20 mA/PWM output, adjustable via switch
Three-way galvanic isolation (input, output, supply)
DIN rail mounting
Power supply 18-32 VDC / 12- 18 VAC with transient and overvoltage protection
Input impedance in voltage and PWM mode 140 KOhm
Input impedance in current mode 250 Ohms Load impedance in voltage mode 500 Ohms minimum
Load impedance in current mode 500 Ohm
maximum insulation > 1000 VDC
Accuracy / - 0.05% FSD
Red LED indication for power supply status
terminal strips suitable for 0.5-2.5 mm² cable (3x2.5 mm²)
load (PWM open collector) < 150 mA
load (PWM open collector) < 150 mA
