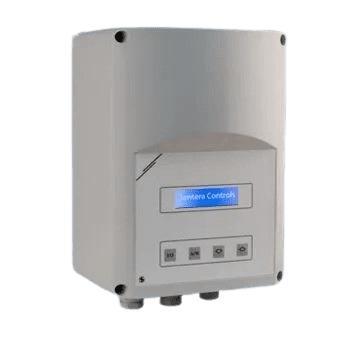

Digitale temperatuurregelaar met realtime klok - 3 A

Digital electronic speed controller TE1S0-30-DT, 230VAC, 50Hz, 3A, Real time clock, Manual/Auto output power according to temperature ( 1 set point), uses FLTSP-500-010 temp.sens. (not included), Min/Max speed, Off temperature and proportional temperature range of the control are adjustable. Used for heating and ventilation.

• Compatible temperature sensor: FLTSN-P500-010
• 1 temperature setting in the range: -25—65 °C
• Analog output: selectable between proportional and digital (for alarm function on TK input)
• Remote control input: remote control for heating/cooling, remote control for switching on/off, maximum ventilation
• 1 unregulated output 230 VAC for a valve connection
• Auto mode - COOLING: speed increases when temperature rises
• Automatic mode - HEATING: speed decreases when temperature rises
• Manual mode: speed increases/decreases on user demand until the next switching point is reached, set by a real-time clock
• Min and max speed settings
• Min. safety speed setting
• Time to maximum speed
• Off-level and kickstart with adjustable duration
• Adjustable hysteresis
• Motor overheating protection with delayed detection option
• User-friendly and intuitive multilingual menu
• User and installer priorities set by passwords
• Calibration and factory reset
