Wandtemperatuur | kamertemperatuur | vochtsensor, PoM voedin

€ 105,37

Verzenden

40sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

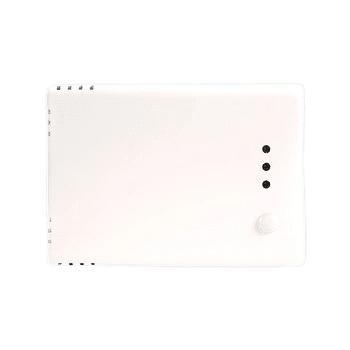

The RWTHM-2 room sensors are combined indoor sensors that measure temperature, relative humidity and light intensity. Based on these measurements, the dew point is also calculated. They are equipped with a second temperature sensor that is located on an aluminium surface on the back of the sensor housing. This measures the temperature of the surface on which the sensor is mounted. This sensor has an RJ45 connector over which both data and power are distributed. However, because there is no digital-to-analog (D/A) conversion, it does not have the classic terminal blocks. And therefore also no analogue output signal. This makes it a good purchase. With the right firmware, it can be combined with Modbus fans and with our frequency converters.

2 temperature measurements and humidity measurement in 1 sensor
This sensor measures both temperature and relative humidity . In addition, this RWTHM is equipped with a second temperature sensor at the back of the device. This allows you to measure the wall temperature in addition to the ambient temperature. This makes it extremely suitable for solutions where wall condensation must be avoided . POM nutritionThe power and data of the RWTHM is via one RJ45 connection. There is no analogue output. This makes this sensor easy to connect and affordable to purchase. Ideal as part of a network. Sentera has ready-made solutions to prevent condensation. This RWTHM sensor is part of this. You can also connect the sensor directly to our RTVS position controller (see YouTube film below), or to our frequency converters.Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm according to the ambient light .Permanent visual control
Thanks to the integrated and dimmable LEDs, you can see at a glance whether the measured value is acceptable, or whether it is in the warning zone or even outside the set range . Not every situation is the same, so you determine the values at which the LEDs change colour.

Smart construction

The RWxxx series are suitable for surface mounting. But in a smart way. The mounting is designed in such a way that it fits perfectly over a standard 68 mm flush-mounting box. And the cable passage is at the back, so you can work perfectly with flush-mounted conduits. Adjustable range per measured value
For both temperature and relative humidity you can determine the range within which the output signal moves proportionally.
