Kanaalsensor temperatuur | vochtigheid, PoM voeding

€ 67,34

40sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

This version of the multifunctional channel sensor measures temperature and humidity. It has an RJ45 connector over which both data and power are distributed. But because there is no digital-to-analog (D/A) conversion, it does not have the classic terminal blocks. And therefore no analog output signal. This makes it a good buy. With the right firmware, it can be combined with Modbus fans or you can connect it to the RTVS transformer controller. This in turn controls the speed of your AC fan in 5 steps. This -M version of the RSTH is also the ideal choice as a building block of a Sentera PoM Modbus network.

Temperature and humidity measurement together in 1 sensor
The most important comfort parameters for a pleasant feeling indoors are temperature and relative humidity. With this sensor, both parameters are calculated and for each of these values, as well as for the dew point and the light intensity, it has a separate Modbus register available. Your building management system or our SenteraWeb cloud service can use these values to calculate control algorithms, send notifications, etc. Easy to use! This sensor does not need to be configured . Once installed, it is ready to use. The default settings are sufficient for most applications. If necessary, the settings can be adjusted via Modbus RTU communication. For example, a different output type can be selected to make the sensor compatible with existing devices: 0-10 VDC / 0-20 mA / 0-100 % PWM. The Modbus register map provides a complete overview of all adjustable settings.

RJ45 PoM connection
This DSTH sensor is available in different versions depending on the required power supply. The power and data of this DSTHM version are provided by a single RJ45 connection. There is no analogue output. This makes this sensor easy to connect and cost-effective to purchase. Ideal as part of a network.Air ducts

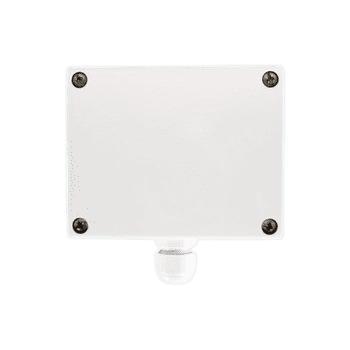

The housing is optimized for temperature and humidity measurements in air ducts . It offers IP54 protection against the ingress of dust and moisture. The sensor element is integrated into the probe of the duct sensor. This probe is provided with an opening so that there is direct contact between the air flow and the sensor element. The sensor probe offers IP20 protection.
