Intelligente temperatuur | vochtsensor, PoM - 24 VDC

€ 89,14

Verzenden

50sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

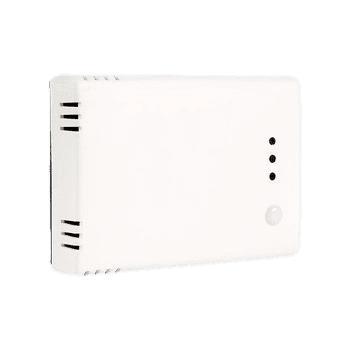

If you are considering switching to structured Power over Modbus (PoM) cabling at some point, this -H version of the RCTH sensor may be the ideal solution. With both standard 24 VDC and PoM power supply options, the RCTHH multifunctional sensor (Temperature and Humidity) features standard terminal blocks with 24 VDC power supply and an analog output, as well as an RJ45 connection. The RJ45 is one of the basic building blocks used to build a Sentera PoM network. It allows you to transport both power and data via Cat5e or Cat6 cabling.

Temperature and humidity measurement in 1 sensor with 1 smart output
The most important comfort parameters for a pleasant feeling indoors are temperature and humidity. With this sensor, both parameters are measured and one control signal is calculated based on both measured values. With its smart algorithm, you have one smart output with which you can directly control your EC fan or valve drive or via a speed controller you can control an AC motor.POM power supply and 24 VDC power supplyThe RCTH sensor is available in different versions depending on the required power supply. This RCTHH combination offers the advantage that the sensor can be easily connected with the RJ45 connector (for data and power), and that it still has an analog output to which you can directly connect an EC fan or valve drive. Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm according to the ambient light .Permanent visual control
Thanks to the integrated and dimmable LEDs, you can see at a glance whether the measured value is acceptable, or whether it is in the warning zone or even outside the set range . Not every situation is the same, so you determine the values at which the LEDs change color.

Smart construction

The RCxxx series are suitable for surface mounting. But in a smart way. The mounting is designed in such a way that it fits perfectly over a standard 68 mm flush-mounting box. And the cable passage is at the back, so you can work perfectly with flush-mounted pipes. Everything in proportion
You determine the " proportions " between the different measured values. By this we mean that you determine whether and to what extent the different measured values weigh in the final result. In this instructional video you can see how this works. You can also switch them off. So if you want, for example, only the humidity measurement to be taken into account, but not the temperature, then that is perfectly possible.
