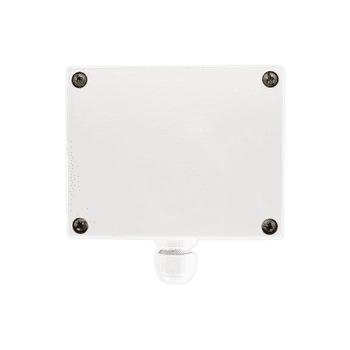

Intelligente kanaalsensor temperatuur | vochtigheid, PoM voe

€ 73,10

Verzenden

80sinds 30 dec. '24, 13:10

Kenmerken

ConditieNieuw

Beschrijving

This version of the intelligent multifunctional channel sensor measures temperature and relative humidity. It has an RJ45 connector over which both data and power are distributed. But because there is no digital-to-analog (D/A) conversion, it does not have the classic terminal blocks. And therefore no analog output signal. With the right firmware, it can be combined with Modbus fans or with our frequency converters, which in turn will control the speed of your AC fan. But this -M version of the DCTH series is also the ideal choice as a building block of a Sentera PoM Modbus network.

Smart indoor air quality based on temperature and relative humidity
Temperature and relative humidity are the most important comfort parameters for a comfortable indoor air quality. You would prefer the sensor to take both parameters into account. Well, this sensor from Sentera can record both measured values and the sensor algorithm controls one Modbus output register . The value of this register varies proportionally as a function of the measured temperature and relative humidity. For example, as the temperature or relative humidity approaches their maximum limit, the fan speed increases or the valve opens.Easy to use!
This sensor does not require any configuration . Once installed, it is ready to use. The default settings are sufficient for most applications. If necessary, the settings can be adjusted via Modbus RTU communication. For example, a different output type can be selected to make the sensor compatible with existing devices: 0-10 VDC / 0-20 mA / 0-100 % PWM. The Modbus register map gives a complete overview of all adjustable settings.RJ45 PoM connection
This DCTH sensor is available in different versions depending on the required power supply. The power and data of this DCTHM version are provided via a single RJ45 connection. There is no analogue output. This makes this sensor easy to connect and cost-effective to purchase. Ideal as part of a network.

Air ducts
The housing is optimized for temperature and humidity measurements in air ducts . It offers IP54 protection against the ingress of dust and moisture. The sensor element is integrated into the probe of the duct sensor. This probe is provided with an opening so that there is direct contact between the air flow and the sensor element. The sensor probe offers IP20 protection.
