Aansluitset voor verschildruk | PVC mondstukken | L 2m

€ 2,94

Verzenden

100sinds 30 dec. '24, 13:10

Kenmerken

ConditieNieuw

Beschrijving

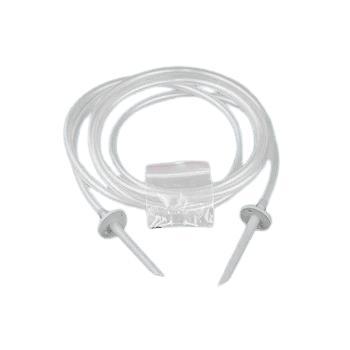

Connection set for differential pressure / air volume sensors. This package contains: 2 plastic (ABS) connectors (L 66.6 mm, D 6 mm) and a flexible, transparent PVC hose (L 2.0 m). Maximum working pressure: 10,000 Pa.

This product can be combined with all Sentera differential pressure sensors and switches (pressostats) equipped with aluminium or plastic connection bushes.Differential pressure or air volume flow
This set allows you to connect a differential pressure sensor to the air ducts. It can be used to measure or control the differential pressure [Pa]. If the K-factor of the fan is known, you can also use it to measure or control the air flow [m³/hour].
For example, in combination with an HPSP differential pressure controller, the fan speed can be controlled to vary the total air flow (VAV-Variable Air Volume) in function of the total demand for air extraction. This keeps the flow of the individual demand the same. (The sum of the individual demands = total demand).High-quality plastic
The connectors are made of grey, high-quality r-ABS plastic. This material is heat-resistant and very tough. They have a length of 83 mm and a diameter of 6.4 mm (connection end). The hose is made of transparent PVC. It has a diameter of 7 mm and a length of 2 m. The maximum working pressure is 10,000 Pa and the maximum working temperature is 60 °C.
