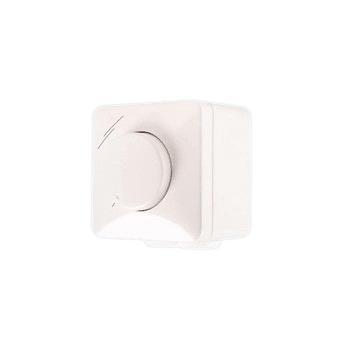

Potentiometer 230V met uitgang 0-10V | 0-20 mA | PWM

The MTV-1/010-PM potentiometer has a 0-10 VDC, 0-20 mA or PWM output signal with which various devices can be controlled. The potentiometer operates on a 230 VAC power supply and provides a continuously variable output signal. The minimum values (1-7 VDC, 2-14 mA, 10-70% PWM), and the maximum values (3-10 VDC, 6-20 mA, 30-100% PWM) can be adjusted. In the 'OFF' position the output is 0 V.

Can be used for both flush (IP44) and surface (IP54) mounting.

PWM potentiometer
MTV potentiometers generate a continuously variable output signal (e.g. 0-10 Volt). This analogue output signal can be used to remotely control EC fans, AC fan speed controllers (EVS or MVS series) or frequency converters (FI-E series). This model is also equipped with a PWM output.

Adjustable minimum and maximum level
Some EC motors cannot handle too small control signals. Sometimes a fan is dimensioned too large or too powerful. No problem, the upper and lower limits of the output of this potentiometer can be set via trimmers.

Works on 230 VAC
This potentiometer works directly on 230 VAC mains voltage. No separate power supply is required!

Different output types
The output type of this potentiometer can be selected via a dip switch (3): 0-10 V, 0-20 mA or 0-100 % PWM.
