Frequentieomvormer met bediening 3fase 230 V | 10,5 A | 2,2

€ 607,52

902sinds 5 jan. '25, 21:08

Kenmerken

ConditieNieuw

Beschrijving

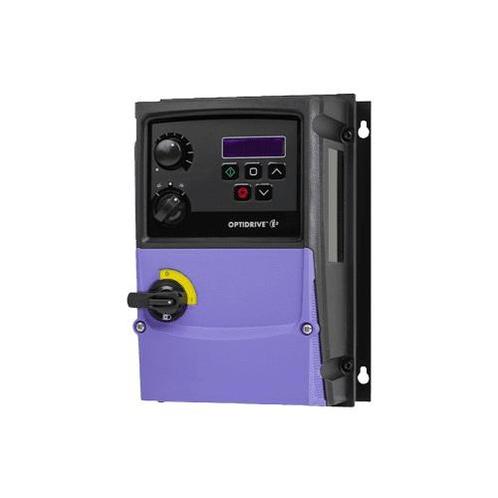

Frequency inverter for three-phase 230 Volt motors on a single-phase 230 Volt mains. The maximum motor current is 10.5 A. It offers IP66 protection against the ingress of dirt and water. The heat sink is corrosion-resistant. . In addition to the features of the standard version, the FISE frequency inverters have an integrated potentiometer, a forward/stop/reverse selector and a padlockable on/off switch. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macros.

This frequency converter can control both fans and pumps in HVAC applications. The device can be mounted on a DIN rail in an electrical cabinet, but wall mounting is also possible. It offers IP20 protection against dust ingress. This frequency converter can control three-phase 230 V IE3, IE4, permanent magnet, brushless DC or synchronous reluctance motors. The integrated EMC filter is class C1.

Manufacturer code: ODE-3-220105-1F4B

User-friendly variable speed controller
A variable speed controller only controls the motor voltage. A frequency converter controls the motor frequency in addition to the motor voltage. On the one hand, there is the advantage of optimum motor control and more energy-efficient operation . On the other hand, there are the higher costs and the need to set some necessary parameters before commissioning. The fact that the motor voltage and motor frequency can be controlled provides additional control options and therefore additional parameters. In order to make the device as user-friendly as possible, application macro functions have been created. The most important settings are grouped into the 14 basic parameters; these can be found on the help card on the housing.Integrated control
This frequency inverter has a built-in potentiometer to select the optimum motor speed. The motor can be switched off or on (forward or reverse) via the 3-position switch . A standard motor can be controlled almost immediately via these two controls. There is also a built-in mains switch. During maintenance, the power supply can be switched off via the main switch with padlock in the OFF position. A safety situation can be created via an optional padlock to ensure safe working conditions.IP66 Enclosure for Outdoor Surface Mounting
The wall-mounted enclosure is designed to protect electronics in harsh environments and outdoor applications. The enclosure offers IP66 protection against ingress of water, dirt and contaminants. This allows this frequency converter to be installed directly on the system, even in washable applications. No electrical cabinet is required. It is advisable to protect the device from snow and direct sunlight.Pulse width modulation
Frequency controllers control the motor voltage and motor frequency using a technology called pulse width modulation . This technology converts the supplied alternating current into direct current. A frequency controller has a DC bus, which can be seen as a buffer tank for the available energy. This buffer tank is filled by both the supply voltage (via the rectifier) and the regenerative energy of the motor that flows back during braking. This direct current is converted back into a type of alternating current by IGBTs. IGBTs or Insulated Gate Bipolar Transistors are bipolar transistors with an insulated gate terminal that can switch high electrical currents at high speed. Thanks to the intelligent control of the IGBTs, both the motor voltage and the motor frequency can be controlled. This enables optimum motor control and energy-efficient operation.
This frequency controller requires a single-phase 230V power supply. It controls standard 3-phase 230V IE2, IE3 and IE4 induction motors . In addition, it can also control permanent magnet motors, brushless DC motors and synchronous reluctance motors.Standard built-in EMC filter class C1
A disadvantage of high-frequency switching IGBTs is the fact that they pollute the electricity grid with higher harmonic interference signals (EMC pollution). In order to minimize this network pollution, an EMC filter class C1 is built in as standard. This frequency converter is also equipped with an integrated brake chopper. This makes it possible to connect a brake resistor to shorten the delay time if necessary. Sentera HVAC sensors can be connected via the analog input or via Modbus RTU communication.
