Acromag profibus DP module

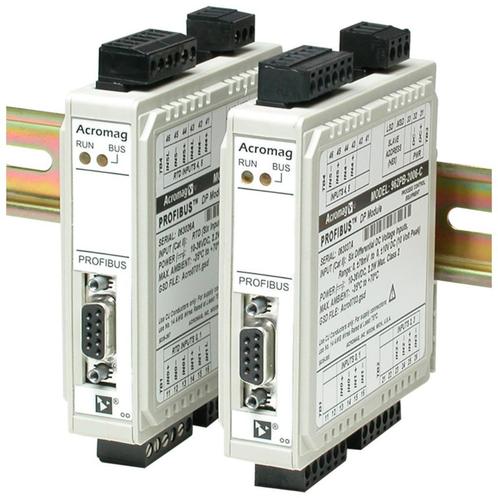

Acromag model 962pb-2006 module voor montage op din rail div leverbaar model 962pb-2006 six differential voltage inputs. These modules provide an isolated profibus-dp network interface for six analog input channels. Differential inputs eliminate ground loops and thus the need for isolators in any applications. Multi-range inputs accept signals from a variety of sensor and devices. High-resolution, low noise, a/d converters deliver high accuracy and reliability. Input rangesdc current (user-selectable ranges) 0 to 1ma, 0 to 11ma, 0 to 20ma, 4 to 20ma 0 to 20 amps ac (with optional ac sensor) dc voltage (user-selectable ranges) ±78mv to ±10v dc (eight range options) network communicationprofibus-dp, rs-485 network up to 12mbaud power requirement12 to 36v dc supply required approvalsprofibus pno certified. Ce marked. Ul, cul listed class i; division 2; groups a, b, c, d. View the full profinet-dp series > 961pb, 962pb: 6-channel differential profibus-dp input modules features & benefits standard profibus-dp network communication with industry-standard asic (siemens spc3) 6-input stand-alone module is very economical differential inputs eliminate ground loops universal inputs support a variety of sensors high-resolution 16-bit sigma-delta a/d converters ensure precise, high accuracy measurements compact packaging with pluggable terminals saves space and simplifies wiring wide operational temperature range permits installation in extreme environments: -25 to 70°c (-13 to 158°f) ac current sensor used with 961pb dc current input modules. One sensor per channel is required
