Eigenlijk nooit gebruikt en in een opwelling gekocht… Mag weg wegens beëindigen van de hobby (telefoon reparaties). Inclusief alle benodigdheden, zoals UV lijm, B7000 lijm tubes, apparaten om lijm te verwijderen, houder, kabel, roller etc.

Ik hoef er niet de hoofdprijs voor te hebben. Ophalen of verzenden.

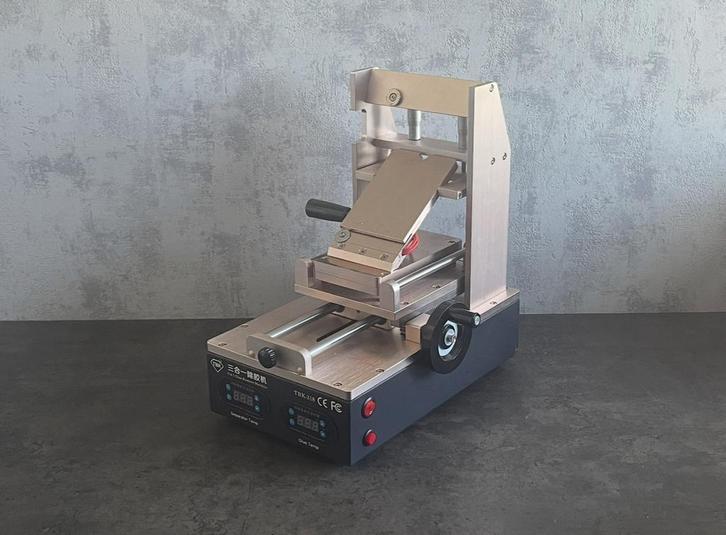

TBK-318 3-in-1 Mobile Phone LCD Screen Separator with Preheater and OCA Glue Polarizer
This is a 3 in 1 glue removal machine, which consists of a heated plate, vacuum manual separator, glue remover function, built-in vacuum pump, only need the plug-in power line, then you can use it.

Specifications:
Size:200*330*350mm
Net Weight:9.5 kg
Gross Weight:10.5kg
Function:LCD Separate + OCA Glue remove + Polarizer remove + Preheater
Working Voltage:AC 110V/AC 220V
Power Supply:350w
Used:For Mobile Phone LCD Repair/Refurbishing/Degumming

The operation steps of screen separation:
Haul back the lower plate, lock the screw tightly(skid resistance).
Turn on the thermostat switch on left, setting the temperature to 80 degrees.
Put the silica gel on the heated plate holes to holes.
Put downwards the screen onto the silica gel, tum on vacuum switch, the screen being sucked.
Adjust steel wire to the height of pressing the glass exactly.
Keep a constant speed to separate LCD and glass.
Take off the LCD, the operation steps of screen separation is.

The operation steps of polarizer remove:
Turn on the thermostat switch on right, setting the temperature to 180 degrees.
Put downwards the screen onto the silica gel, turn on the vacuum switch, the screen is sucked.
Put the blade on one end of the polarizer, push the plate, and then the polarizer will fall off.
Turn down the vacuum switch and take out the screen.

Package includes:
1 x TBK-318
1 x Power cable
