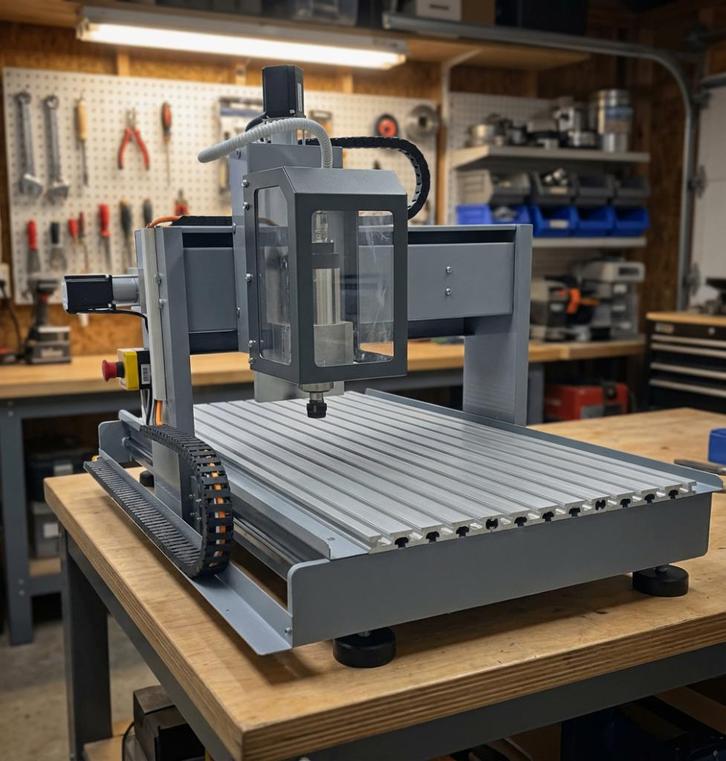

3D OptiTech 50/70
Premium Compact CNC Router (500×700)
The 3D OptiTech 50/70 is a compact CNC machine designed with a very clear goal: to deliver a rigid, precise, and modern platform, suitable both for advanced makers and for small labs and R&D departments.
It’s an updated, contemporary machine focused on robust mechanics, an advanced control system, and a clean, professional design.

The 3D OptiTech 50/70 is ideal for:
Mechanical prototyping (brackets, jigs, fixtures, technical panels)
Woodworking and wood-based materials (panels, furniture, custom components)
Engineering plastics (PMMA/acrylic, PVC, polycarbonate) with proper dust extraction
Light aluminum machining, with the right tooling and parameters
Maker labs / education / R&D, where repeatability and reliability matter

Technical Specifications
Working Area (Useful Travel)
X = 500 mmY = 700 mmZ = 150 mm

Table
Table size: 620 × 920 mm
Worktable: aluminum

Structure
Frame: steel structure with structural aluminum elements

Control & Software
3-axis USB controller
Communication interface USB

Included:
Control PCSoftware: Mach3

Transmission & Motors
Transmission: ball screwDrives:
Closed-loop stepper motors (steppers with encoders, they do not lose steps)

Spindle
Option 1 — 2.2 kW Spindle with VFD (inverter)
Power: 2200 W
Max speed: 24000 rpm
Voltage: 230 V
Current: 8.0 A
Max frequency: 400 Hz
Bearings: 2 × 7005C P4 + 2 × 7002C P4
Torque: 0.91 Nm
Tool holder: ER20
Weight: 5.0 kg

Performance
Repeatability: ± 0.025 mm
Max rapid speed: up to 10,000 mm/min
Cutting feed rate: up to 5,000 mm/min

Safety, Power, Weight
Safety: Emergency stop button (E‑Stop)
Power supply: 220 V – 50/60 Hz
Weight: approx. 100 kg

Included with Purchase
ER20 collet/collet-holder set
Control PC
